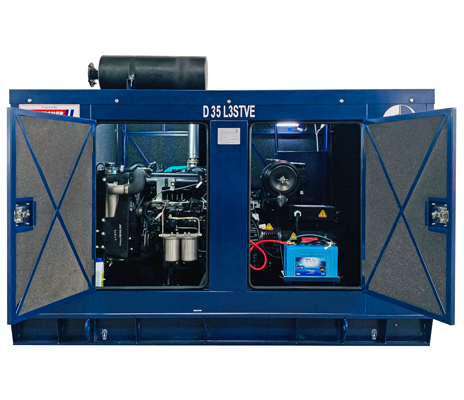

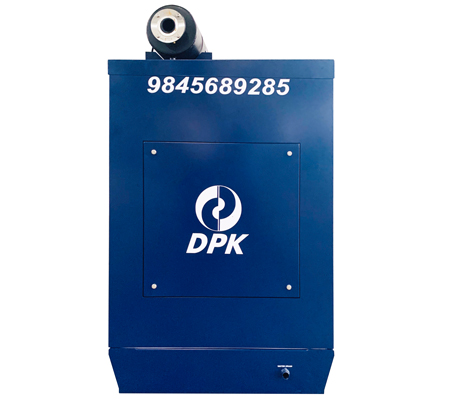

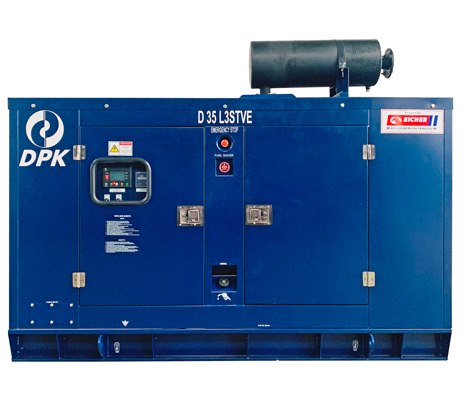

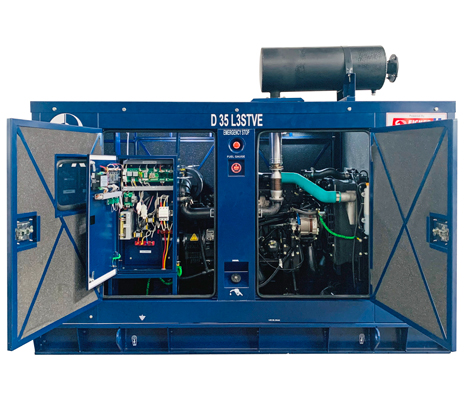

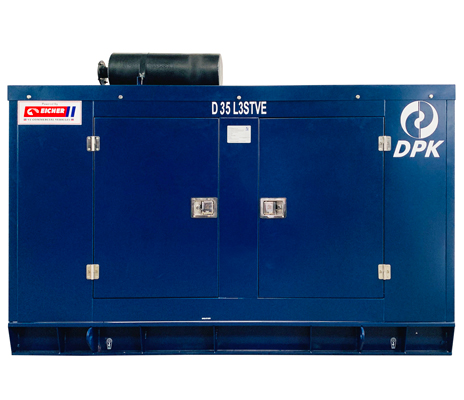

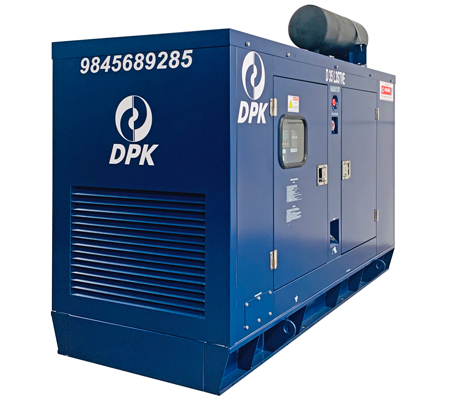

DPK 35KVA 1 Phase Liquid Cooled Diesel Genset
| Brand | DPK |
| Model | D35L1STVE |
| Genset Rating | 35KVA |
Technical Specification
| Engine Make | VECV (Volvo Group & Eicher Motors JV) |
| Engine Model | EE483TCI |
| Cooling system | Liquid cooled |
| Engine Power (BHP) | 52 |
| Speed (RPM) | 1500 |
| Engine Prime Power (KW) | 38.78 |
| Block loading | > 60% |
| No of Cylinders | 4 |
| Average Fuel consumption @75% in Litres /hr | 5.6 |
| Cylinder arrangement | Vertical In-Line |
| Aspiration | Turbocharged Intercooled |
| Combustion system | Direct Injection |
| Governor class / type | A1 / Mechanical |
| Starting system | 12V DC Electrical |
| Bore x Stroke (mm) | 100 x 105 |
| Compression ratio | 17:01 |
| Coolant capacity in litres | 15 |
| Fuel Type | High Speed Diesel |
| Lub. oil specification | API CI4 Plus - SAE 15W 40 |
| Lub. oil system capacity (litres) | 13 |
| Service interval | 500 hours or 1 year |
| Alternator | Leroy Somer |
| Output of the Alternator (KVA) | 40 |
| Power factor | 0.8 |
| Voltage (V) | 230 |
| Phase | 1 |
| Line Current in Amps | 152.2 |
| Frequency in Hz | 50 |
| Speed in RPM | 1500 |
| Ambient in deg C | 40 |
| Duty | S1 |
| Type of Alternator | Brushless |
| Class Of Insulation | H |
| IP rating | 23 |
| Battery | Tata Green |
| No of Batteries | 1 |
| AH | 80 |
| DG set | DPK |
| Door lock | Stainless Steel |
| Hinges | Stainless Steel |
| Fuel filling | Lockable external fuel filling |
| Fuel level percentage indicator | External LED display |
| Diesel filling can | 35ltrs can |
| Funnel for diesel filling | MS powdered coated |
| Emergency switch off | External push button |
| Sound level (dBA)* | 72.5 |
| Genset Dimension (LxWxH) in mm | 2450 x 1000 x 1855 |
| Fuel tank capacity (litres) | 95 |
| Genset weight (kg) | 1350 |
| Warranty** | 2 years or 5000 hrs |
* As per CPCB norms, ARAI certified and approved.
** Conditions apply, refer "terms & conditions" and "warranty policy".
