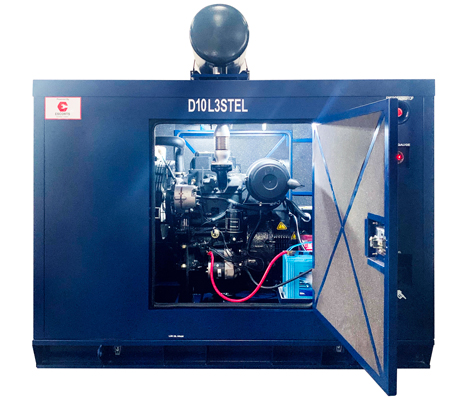

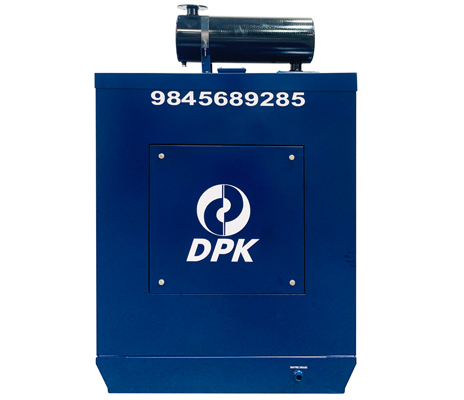

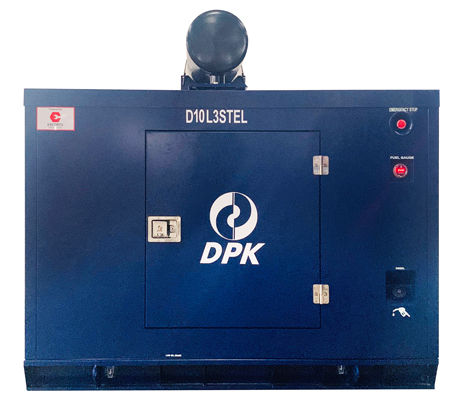

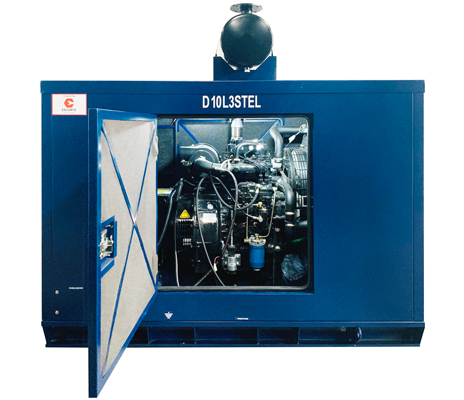

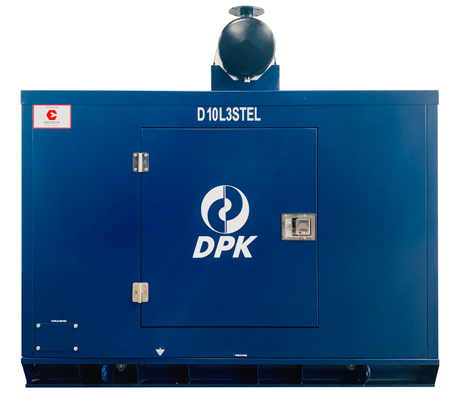

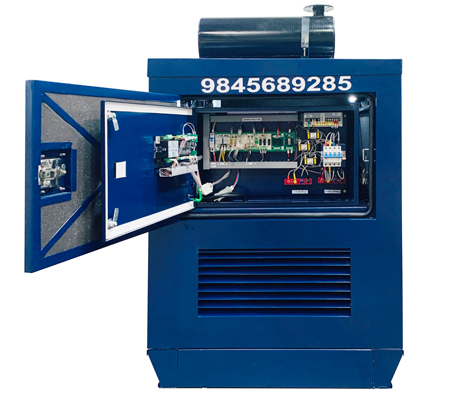

DPK 10KVA 1 Phase Liquid Cooled Diesel Genset
Brand DPK
Model D10L1STEL
Genset Rating 10KVA

Technical Specification

Engine Make Escorts
Engine Model G12
Cooling system Liquid cooled
Engine Power (BHP) 18
Speed (RPM) 1500
Engine Prime Power (KW) 13.41
Block loading >60%
No of Cylinders 2
Average Fuel consumption @75% in Litres /hr 2.4
Cylinder arrangement Inline
Aspiration Natural Aspiration (NA)
Combustion system Direct Injection
Governor class / type A1 / Mechanical
Starting system 12V DC Electrical
Bore x Stroke (mm) 91 x 110
Compression ratio 17.5:1
Coolant capacity (litres) 7.1
Fuel Type High Speed Diesel
Lub. oil specification 20W40 CF4
Lub. oil system capacity (litres) 5.5
Service interval First change at 100hrs, thereafter every 300hrs of operation
Alternator Leroy Somer
Output of the Alternator (KVA) 10
Power factor 0.8
Voltage (V) 230
Phase 1
Line Current in Amps 43.5
Frequency in Hz 50
Speed in RPM 1500
Ambient in deg C 40
Duty S1
Type of Alternator Brushless
Class Of Insulation H
IP rating 23
Battery Tata Green
No of Batteries 1
AH 80
DG set DPK
Door lock Stainless Steel
Hinges Stainless Steel
Fuel filling Lockable external fuel filling
Fuel level percentage indicator External LED display
Diesel filling can 35ltrs can
Funnel for diesel filling MS powdered coated
Emergency switch off External push button
Sound level (dBA)* 74
Genset Dimension (LxWxH) in mm 1770 x 1000 x 1660
Fuel tank capacity (litres) 80
Genset weight (kg) 800
Warranty** 2 years or 5000 hrs
* As per CPCB norms, ARAI certified and approved.
** Conditions apply, refer "terms & conditions" and "warranty policy".
